Coupon 🥰 Jet 408858 – (AFRLMH1) 3 PC Air Filter, Regulator And Lubricator 1″ NPT – Heavy Duty 😀

Original price was: $509.00.Current price is: $95.99.

SKU: JET408858 Categories: Air Tools, Hoses and Fittings Tag: Jet

Excellent customer service online in a timely manner
Green products, guaranteed.
Multiple payment methods, safe and reliable
100% High-Quality Guarantee

Description
Reviews (0)

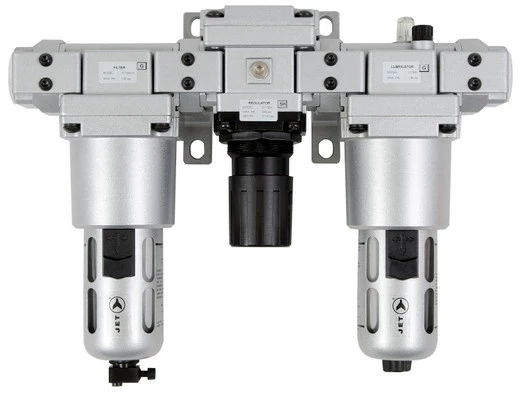

The filter, regulator and lubricator is a 3 piece assembly including all 3 individual components. The 3 components are attached in series using spacers and piping adaptors, which make the individual components easily removable / mountable without disturbing the pipe line. Comes complete with wall mounting bracket

Air filter is designed to eliminate dust, water and other impurities from reaching air tool, extending tool life

Air regulator governs air flow to desired PSI air pressure

Lubricator device is indispensable for air generated equipment, atomizing lubricant into the compressed air allowing it to reach and lubricate the internal parts of the air tool

Maximum Working Air Pressure: 145 PSI

Ambient Temperature: 0-60°C (32-140°F)

Modular Mounting

Vertical Mounting

Wetted Components: Aluminum, bronze, brass, steel, acetal, polycarbonate, stainless steel and nitrile

Inlet Pressure 105 PSI (7 BAR). Set Pressure 90 PSI (6 BAR). Pressure Drop 17 PSI (1 BAR)

Max. Flow : 175 cfm (5,000 LPM)

Port Size : 1″

Pressure Gauge Port Size : 1/4″

Bowl Size (Filter) : 5.6 oz (165 ml)

Bowl Size (Lubricator) : 6.8 oz (200 ml)

Height : 14.6″ (370 mm)
